HCB Cage Type Double Seat Control Valve 40-200mm Double Seated Globe Valve

Brand Name : WEYO

Model Number : HCB

Place of Origin : China

MOQ : Negotiable

Price : Based on oroiect reauirements

Payment Terms : T/T, L/C

Supply Ability : 5000 units per month for small parts. 1000 units per month for large parts

Delivery Time : 7 - 15 days for small orders, 15 - 30 days for large orders

Packaging Details : Customized packaging to protect products

Type : Straight-through double-seat cast globe valve

Nominal diameter : 40～200mm

Nominal pressure : ANSI 125, 150, 300, 600 JIS 10, 16, 20, 30, 40K PN 1.6, 4.0, 6.4MPa

Connection type : Flanged: FF, RF, RJ, LG Standards: ANSI B16.5, JIS B2201, JB/T79.1 PN1.6MPa, JB/T79.2 (male-female face)Welded: Socket weld (SW): 40～50mm Butt weld (BW): 65～200mm

Materials : HT200, ZG25, ZG1Cr18Ni9, ZG0Cr17Ni12Mo2, 1.25Cr0.5Mo, 5.0Cr0.5Mo, SCPH21, SCPH61, Ti

Upper bonnet : Normal temperature type (P): -17～+230℃ Extended type Ⅰ (E1): -45～-17℃, +230～+566℃ Extended type Ⅱ (E2): Integral (E2I): -100～-45℃ Welded (E2W): -196～-100℃

Gland type : Bolt-compressed type

Packing : V-type PTFE packing, PTFE-impregnated asbestos packing, asbestos braided packing

Contact Now

HCB Cage-Type Double-Seat Control Valve
The HCB cage-type double-seat control valve is a pressure-balanced control valve. The fluid channel of the valve body is S-streamlined, and it is also equipped with a guide vane that improves the smooth flow of fluid around the sleeve. It has the advantages of small pressure drop loss, large flow rate, wide adjustable range, high precision of flow characteristic curve, good dynamic stability, low noise, and little cavitation corrosion.

The control valve is equipped with a multi-spring diaphragm actuator, which has a compact structure and large output force. It is suitable for controlling high-pressure difference fluids at high or low temperatures.
Cv value and stroke are shown in Table 1 Table 1
Nominal diameter(mm) 40 50 65 80 100 150 200
Valve seat diameter(mm) 25 32 40 32 40 50 40 50 65 50 65 80 65 80 100 100 125 150 125 150 200
Rated Cv value High-capacity sleeve Equal percentage 36 60 100 140 220 420 820
Linear 40 75 110 150 240 435 850
High-precision sleeve 11 17 24 17 24 44 24 44 68 44 68 99 68 99 175 175 275 360 275 360 650
Rated stroke(mm) 25 38 50 75

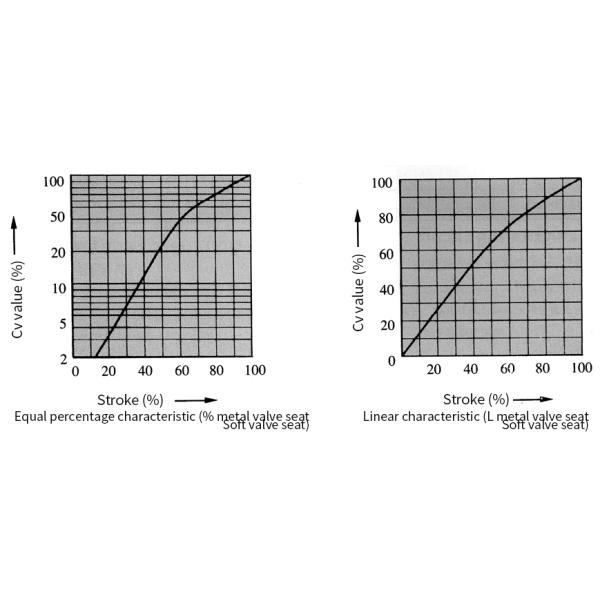

High-precision flow characteristic curve

HCB Cage Type Double Seat Control Valve 40-200mm Double Seated Globe Valve

HCB Cage Type Double Seat Control Valve 40-200mm Double Seated Globe Valve

Flow Characteristic Curve of High-Capacity Sleeve

HCB Cage Type Double Seat Control Valve 40-200mm Double Seated Globe Valve

Allowable pressure difference

Ⅰ. Metal valve seat (see Tables 2 and 3)
A. Air-to-close valve Tables 2
Actuator Supply pressure
(MPa)		 Spring range
(MPa)		 Positioner Allowable pressure difference(MPa)
Nominal diameter(mm)
40 50 65 80 100 150 200
HA2D 0.14 0.02-0.10 with or With out 0.99 0.77 0.66 0.54 0.42 - -
0.16 0.02-0.10 with 4
4.92		 3.8 3.29 2.74 2.08 - -
0.40 0.08-0.24 with 4
10		 4
10		 4
9.87		 4
8.23		 4
6.28		 - -
HA3D 0.14 0.02-0.10 with or With out 1.75 1.37 1.17 0.97 0.74 0.52 -
0.16 0.02-0.10 with 4
8.7		 4
6.7		 4
5.8		 4
4.87		 3.7 2.61 -
0.40 0.08-0.24 with 4
10		 4
10		 4
10		 4
10		 4
10		 4
7.86		 -
HA4D 0.14 0.02-0.10 with or With out - - 2.02 1.67 1.28 0.90 0.74
0.16 0.02-0.10 with - - 4
10		 4
8.39		 4
6.36		 4
4.5		 3.7
0.40 0.08-0.24 with - - 4
10		 4
10		 4
10		 4
10		 4
10

B. Air-to-open valve Table 3
Actuator Supply pressure
(MPa)		 Spring range(MPa) Positioner Allowable pressure difference(MPa)
Nominal diameter(mm)
40 50 65 80 100 150 200
HA2R 0.14 0.02-0.10 with or With out 0.99 0.77 0.66 0.54 0.42 -
0.28 0.08-0.24 with 4
6.81		 4
5.39		 4
4.6		 3.84 2.93 - -
HA3R 0.14 0.02-0.10 with or With out 1.75 1.37 1.17 0.97 0.74 0.52 -
0.28 0.08-0.24 with 4
10		 4
9.57		 4
8.17		 4
6.8		 4
5.18		 3.67 -
HA4R 0.14 0.02-0.10 with or With out - - 2.02 1.67 1.28 0.90 0.74
0.28 0.08-0.24 with - - 4
10		 4
10		 4
8.97		 4
6.3		 4
5.1
VA5R 0.14 0.02-0.10 with or With out 1.75 1.23 1.02
0.14 0.04-0.12 with or With out - - - 4
5.2		 3.7 3.07
0.28 0.08-0.24 with 4
10		 48 47
VA6R 0.40 0.19-0.35 with - - - 4
10		 - -
0.50 0.19-0.40 with - - - 4
10		 -
Remarks:

1.The numbers in the dark boxes indicate the standard specification actuators matched with the valve.

2.The maximum allowable pressure difference shall not exceed the maximum value specified in ANSI B16.34 or JIS B2201 standards.

3.In the same cell, the number above is the allowable pressure difference when the valve is fully open, and the number below is the allowable pressure difference when the valve is closed.
